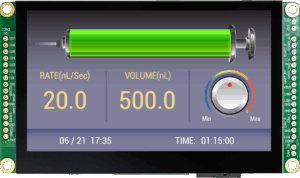

NEW 4,3 inch RS485 Smart TFT Display with PCAP Touch, Modbus & GPIO





Fragen Sie uns jetzt an



NEW 4,3” RS485 Smart TFT Display with PCAP Touch, Modbus & GPIO

Model Features:

>Operating Voltage: 5-28 Vdc

>Communication Interface: RS485 differential

>MCU: STM32F750

>Flash Memory: 16 MB

>LCD Display Size: 4,3″

>Dot Matrix: 480 × RGB × 272(TFT) dots

>Module Dimensions: 119.3(W) × 67.2(H) × 13(D) mm

>Active Area: 95.04(W) × 53.856 (H) mm

>Pixel Pitch: 0.198(H) × 0.198(V) mm

>Brightness: Min: 300; Typ: 400 cd/m2

>Backlight Type: TFT, Normally Black, Transmissive

>Viewing Angle: 80/80/80/80

>Aspect Ratio: 16:9

>Touch Panel: Projected Capacitive Touch Panel (PCAP)

>Surface: Glare

>Operational Temperature Range: -30°C to +80°C

>Storage Temperature Range: -30°C to +80°C
