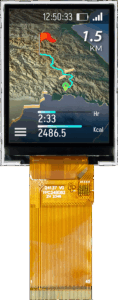

NEW 2,4″ Transflective TFT-LCD Display
Model Features:
>Size: 2,4″
>Dot Matrix: 240 × RGB × 320(TFT) dots
>Module Dimensions: 42.72 × 60.26 × 2.63 mm
>Active Area: 36.72 × 48.96 mm
>Pixel Pitch: 0.153 × 0.153 mm
>LCD Type: TFT, Normally White, Transflective
>Viewing Direction: 3 o’clock
>TFT Interface: 8/9/16/18Bit MCU, 3/4SPI+16/18Bit RGB, 3-line/4-line Serial
>Backlight Type: LED, Normally White
>TFT Driver IC: ST7789 or Equivalent
>Touch Panel: Without Touch Panel
>Surface: Anti-Glare
>Operational Temperature Range: -20°C to +70°C
>Storage Temperature Range: -30°C to +80°C
